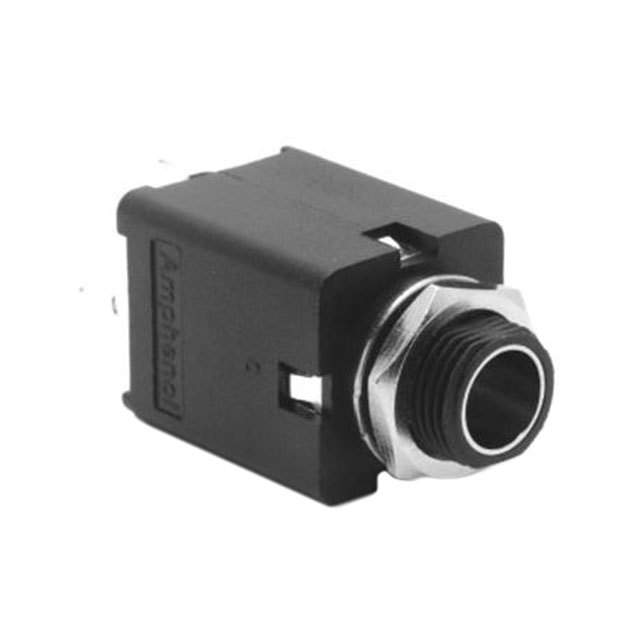

ACJS-MIV-5
Amphenol Tuchel Electronics
Images are for reference only.
See Product Specifications for product details.
Buy ACJS-MIV-5 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ACJS-MIV-5 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ACJS-MIV-5 Datasheet| Part Number | ACJS-MIV-5 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Description | CONN JACK STEREO 1/4" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 25pcs | 50pcs | 100pcs | 500pcs |
|---|---|---|---|---|---|---|
| $0.401 | $0.353 | $0.332 | $0.318 | $0.304 | $0.249 | |
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ACJS-MIV-5 |
|---|---|
| Manufacturer | Amphenol Tuchel Electronics |
| Product Category | Barrel - Audio Connectors |
| Description | CONN JACK STEREO 1/4" |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 110292 pcs |
| Datasheet | ACJS-MIV-5.pdf |
| Voltage - Rated | - |
| Thread Size | 3/8"-32 |
| Termination | Solder Eyelet(s) |
| Signal Lines | Stereo (3 Conductor, TRS) |
| Shielding | Unshielded |
| Series | M |
| Panel Hole Size | 0.382" (9.70mm) |
| Packaging | Bulk |
| Other Names | 889-1819 |
| Operating Temperature | -25°C ~ 70°C |
| Number of Positions/Contacts | 3 Conductors, 5 Contacts |
| Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Mating Length/Depth | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Internal Switch(s) | Two Switches |
| Insulation Color | - |
| Industry Recognized Mating Diameter | 6.35mm (0.250", 1/4") - Headphone |
| Includes | 3 pcs - 1 Connector, 1 Nut, 1 Washer |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Gender | Female |
| Features | Mounting Hardware |
| Detailed Description | 6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder Eyelet(s) |
| Contact Material - Plating | Gold |
| Contact Material | Copper |
| Connector Type | Phone Jack |
| Cable Opening | - |
| Body Material | - |
| Body Color | Black |
| Actual Diameter | - |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all Amphenol Tuchel Electronics series electronic components. We have 110292 pcs of Amphenol Tuchel ElectronicsACJS-MIV-5 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
