ADUM4120CRIZ
ADI (Analog Devices, Inc.)

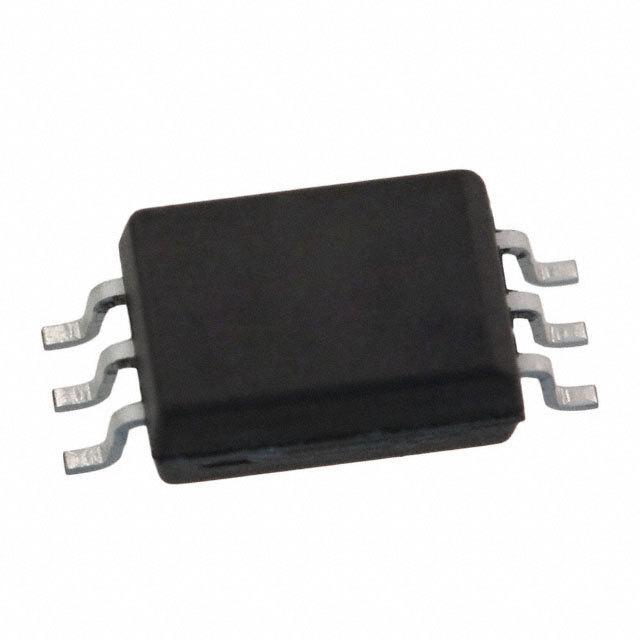

Images are for reference only.
See Product Specifications for product details.
Buy ADUM4120CRIZ with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy ADUM4120CRIZ with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload ADUM4120CRIZ Datasheet| Part Number | ADUM4120CRIZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | DGTL ISO 5KV 1CH GATE DRVR 6SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | 10pcs | 100pcs | 500pcs | 1000pcs | |
|---|---|---|---|---|---|---|
| $1.777 | $1.597 | $1.308 | $1.114 | $0.939 | ||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | ADUM4120CRIZ |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Isolators - Gate Drivers |
| Description | DGTL ISO 5KV 1CH GATE DRVR 6SOIC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33245 pcs |
| Datasheet | ADUM4120CRIZ.pdf |
| Voltage - Supply | 11.6 V ~ 35 V |
| Voltage - Isolation | 5000Vrms |
| Voltage - Forward (Vf) (Typ) | - |
| Technology | Magnetic Coupling |
| Supplier Device Package | 6-SOIC-IC |
| Series | iCoupler® |
| Rise / Fall Time (Typ) | 18ns, 18ns |
| Pulse Width Distortion (Max) | 16.5ns |
| Propagation Delay tpLH / tpHL (Max) | 69ns, 79ns |
| Packaging | Tube |
| Package / Case | 6-SOIC (0.295", 7.50mm Width) |
| Operating Temperature | -40°C ~ 125°C |
| Number of Channels | 1 |
| Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Detailed Description | 2.3A Gate Driver Magnetic Coupling 5000Vrms 1 Channel 6-SOIC-IC |
| Current - Peak Output | 2.3A |
| Current - Output High, Low | - |
| Common Mode Transient Immunity (Min) | 150kV/µs |
| Base Part Number | ADUM4120 |
| Approvals | CSA, UR, VDE |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 33245 pcs of ADI (Analog Devices, Inc.)ADUM4120CRIZ in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
