AD261BND-3
ADI (Analog Devices, Inc.)

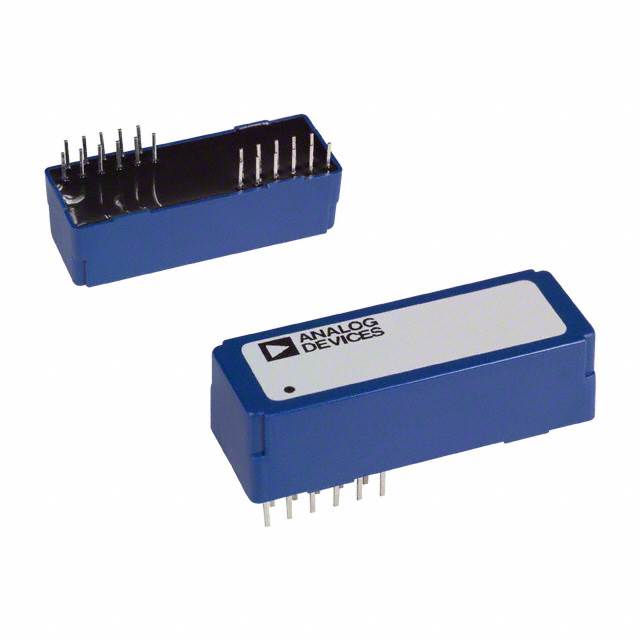

Images are for reference only.
See Product Specifications for product details.
Buy AD261BND-3 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy AD261BND-3 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload AD261BND-3 Datasheet| Part Number | AD261BND-3 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | DGTL ISO 3.5KV GEN PURP 22DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) |
1pcs | |||||
|---|---|---|---|---|---|---|
| $27.884 | ||||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | AD261BND-3 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | Digital Isolators |
| Description | DGTL ISO 3.5KV GEN PURP 22DIP |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 1196 pcs |
| Datasheet | AD261BND-3.pdf |
| Voltage - Supply | 4 V ~ 5.75 V |
| Voltage - Isolation | 3500Vrms |
| Type | General Purpose |
| Technology | Magnetic Coupling |
| Supplier Device Package | 22-PDIP |
| Series | IsoLogic™ |
| Rise / Fall Time (Typ) | - |
| Pulse Width Distortion (Max) | - |
| Propagation Delay tpLH / tpHL (Max) | 25ns, 25ns |
| Packaging | Tube |
| Package / Case | 22-DIP Module |
| Operating Temperature | -25°C ~ 85°C |
| Number of Channels | 5 |
| Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Isolated Power | No |
| Inputs - Side 1/Side 2 | 3/2 |
| Detailed Description | General Purpose Digital Isolator 3500Vrms 5 Channel 10kV/µs CMTI 22-DIP Module |
| Data Rate | - |
| Common Mode Transient Immunity (Min) | 10kV/µs |
| Channel Type | Unidirectional |
| Base Part Number | AD261 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 1196 pcs of ADI (Analog Devices, Inc.)AD261BND-3 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
