HMC547LC3TR-R5
ADI (Analog Devices, Inc.)

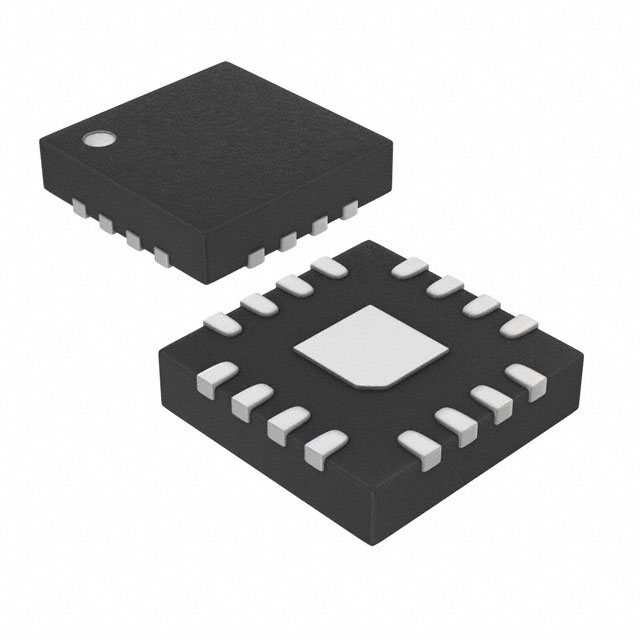

Images are for reference only.
See Product Specifications for product details.
Buy HMC547LC3TR-R5 with confidence from GFG-TX.com, 1 Year Warranty
See Product Specifications for product details.
Buy HMC547LC3TR-R5 with confidence from GFG-TX.com, 1 Year Warranty
Request a Quote
Dowload HMC547LC3TR-R5 Datasheet| Part Number | HMC547LC3TR-R5 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Description | IC MMIC NON-REFL SW SPDT 16SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| In Stock |
||||||
| Reference Price (In US Dollars) | Get a quote | |||||
- Product parameter
- Related products
- Related news
- Data sheet
Product parameter
| Part Number | HMC547LC3TR-R5 |
|---|---|
| Manufacturer | ADI (Analog Devices, Inc.) |
| Product Category | RF Switches |
| Description | IC MMIC NON-REFL SW SPDT 16SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5591 pcs |
| Datasheet | HMC547LC3TR-R5.pdf |
| Voltage - Supply | - |
| Topology | Absorptive |
| Test Frequency | 28GHz |
| Supplier Device Package | 16-CSMT (3x3) |
| Series | - |
| RF Type | General Purpose |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VFCQFN Exposed Pad |
| P1dB | 23dBm |
| Operating Temperature | -40°C ~ 85°C |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Isolation | 34dB |
| Insertion Loss | 2.4dB |
| Impedance | 50 Ohm |
| IIP3 | 46dBm |
| Frequency Range | DC ~ 28GHz |
| Features | - |
| Detailed Description | RF Switch IC General Purpose SPDT 28GHz 50 Ohm 16-CSMT (3x3) |
| Circuit | SPDT |
| Base Part Number | HMC547 |
GFG-TX.com is a Reliable Stocking Distributor of Electronic Components. We specialize in all ADI (Analog Devices, Inc.) series electronic components. We have 5591 pcs of ADI (Analog Devices, Inc.)HMC547LC3TR-R5 in stock available now. Request a quote from electronics components distributor at GFG-TX.com, our sales team will contact you within 24 hours.
